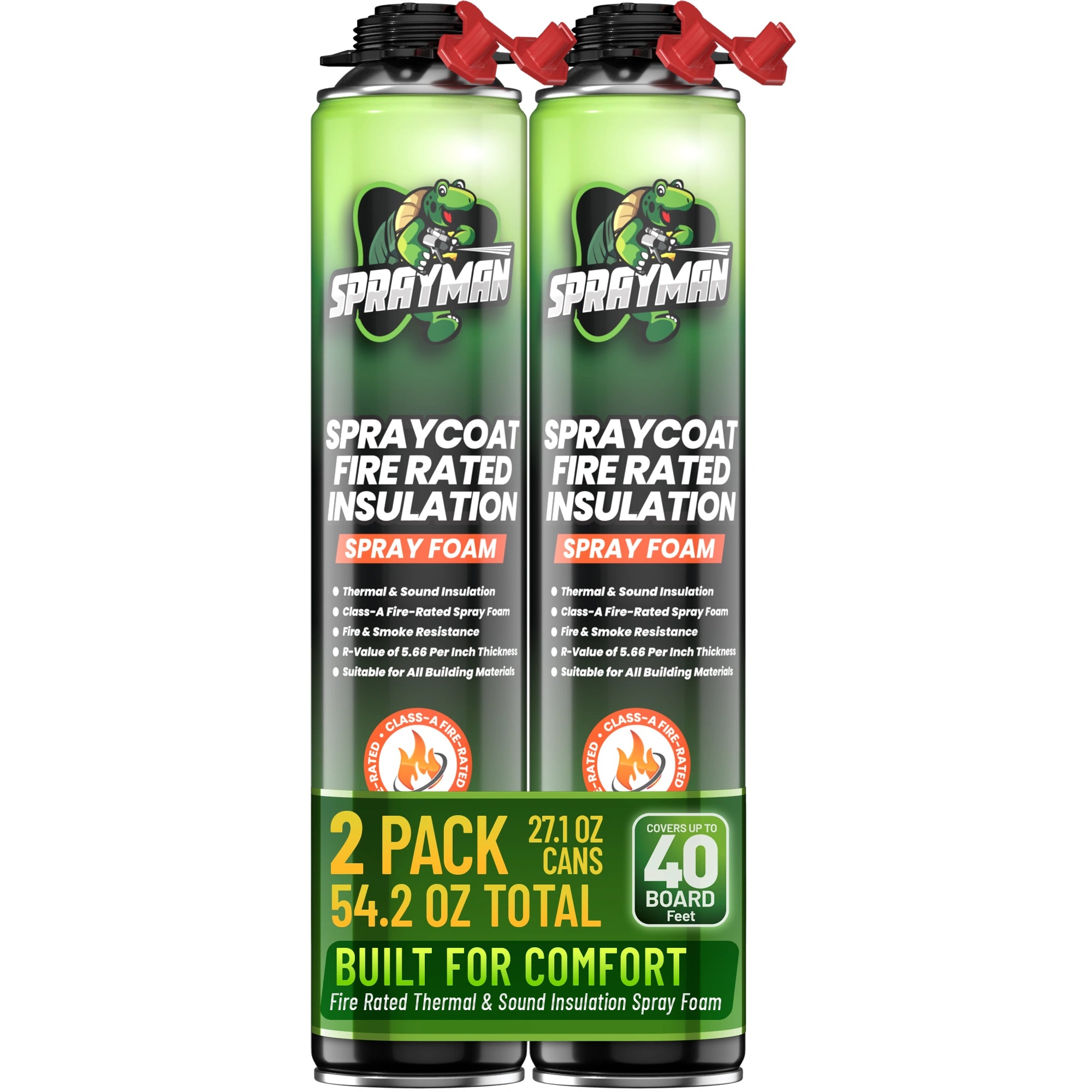

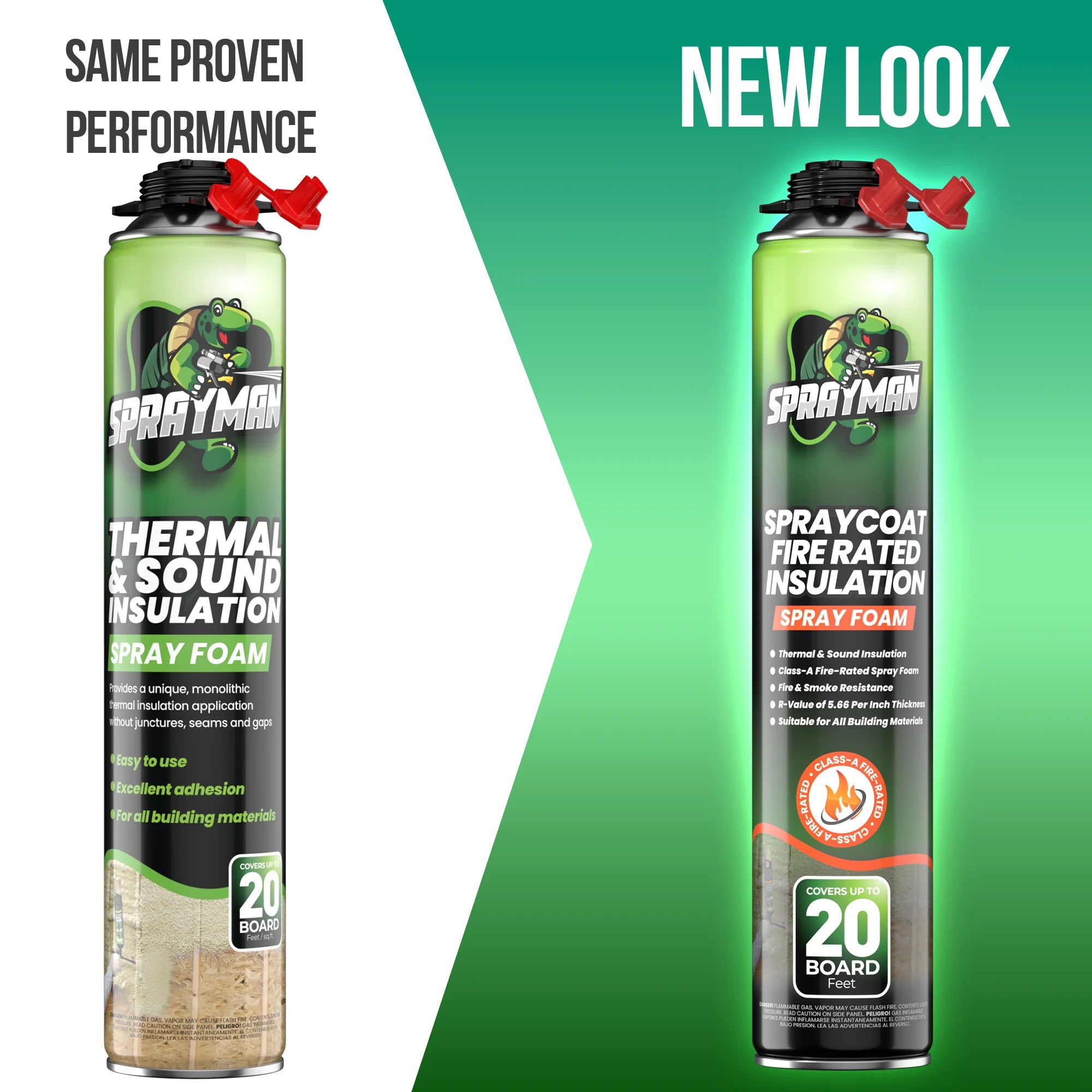

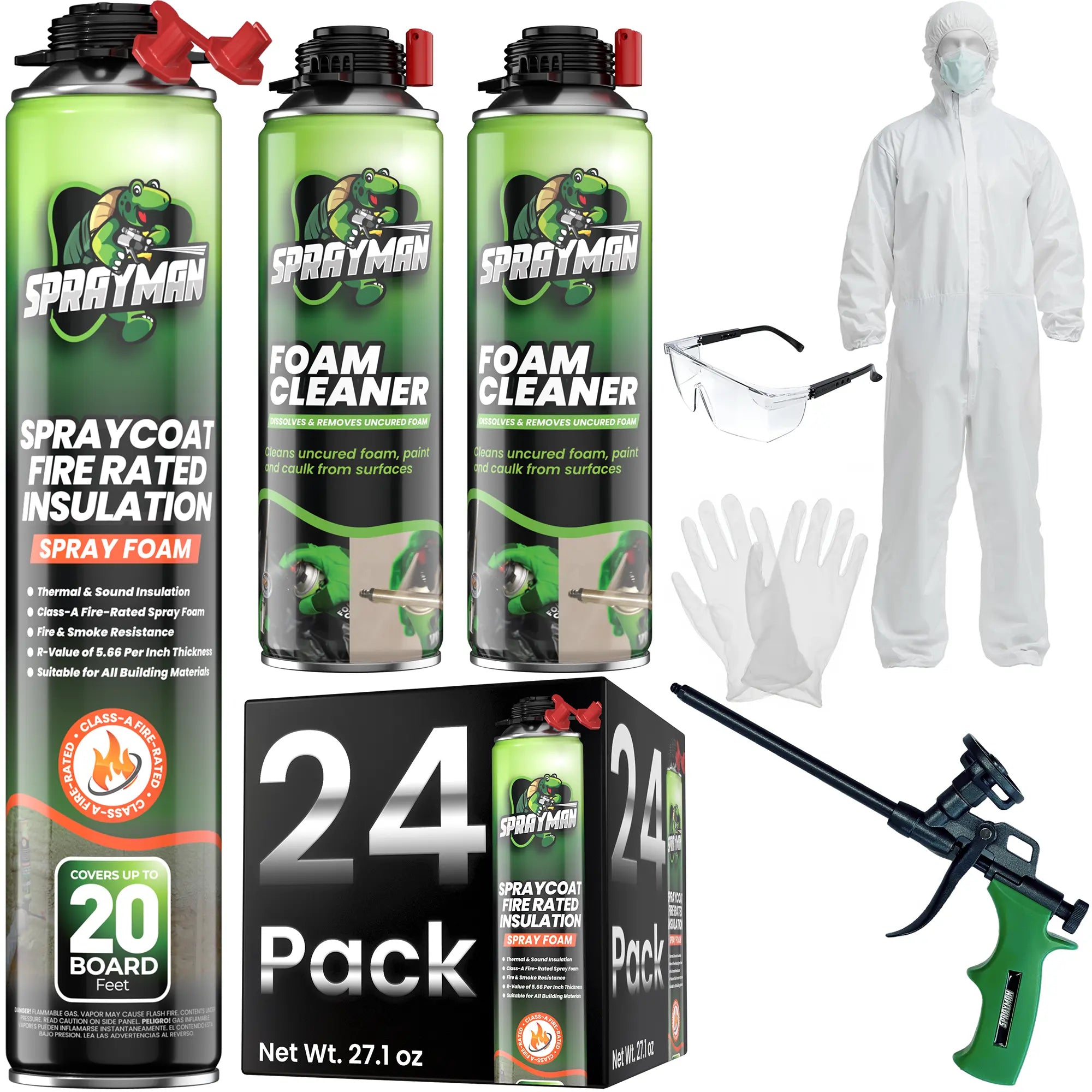

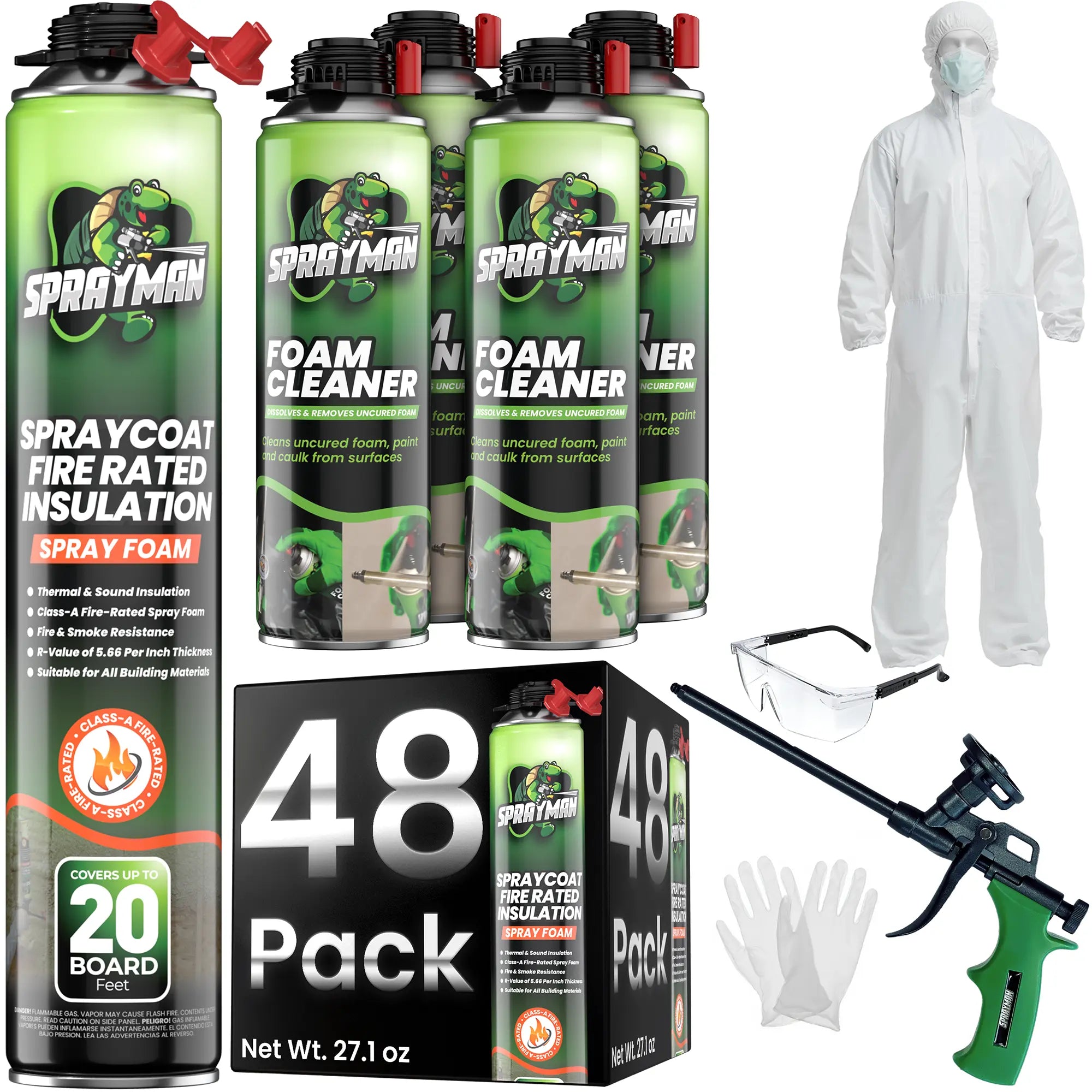

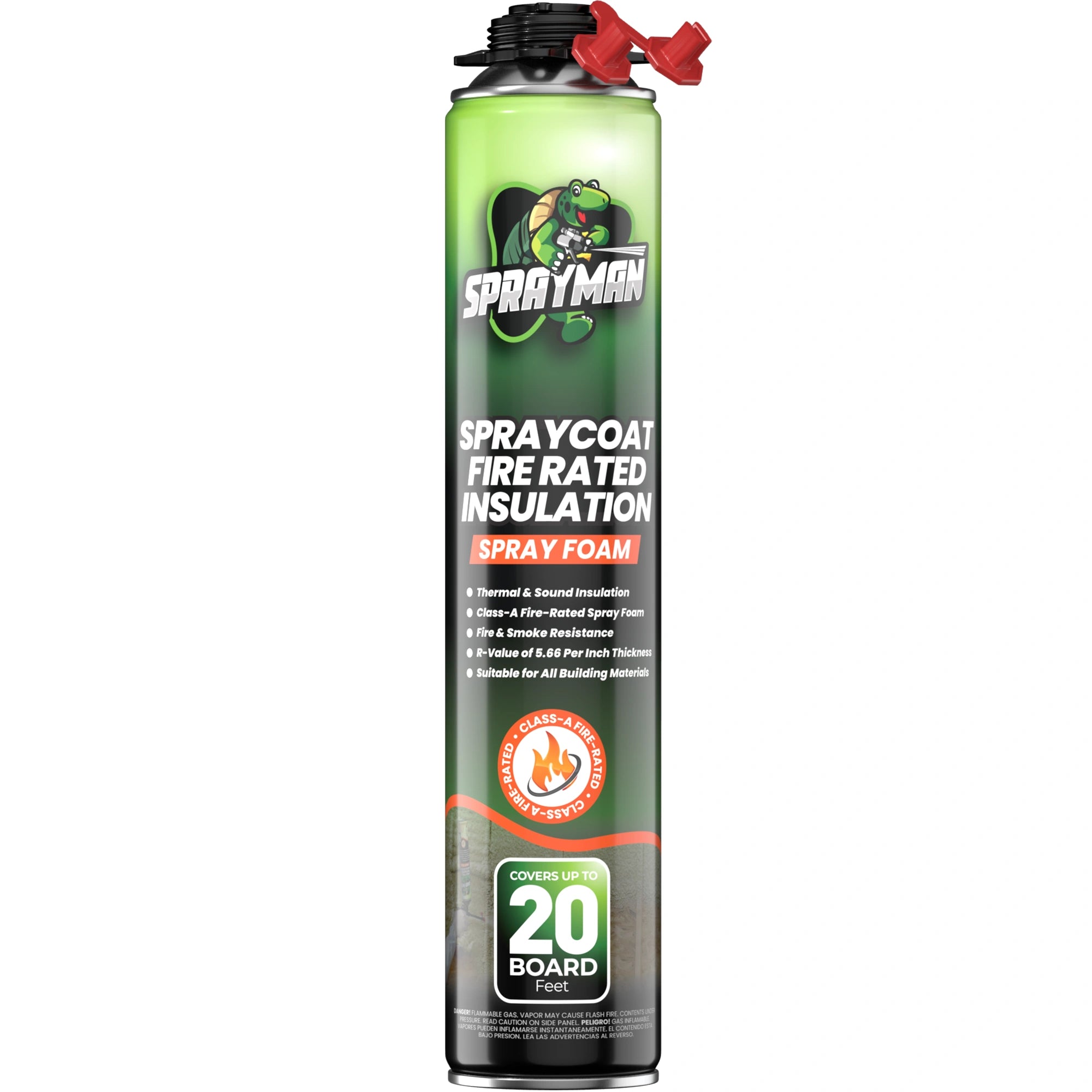

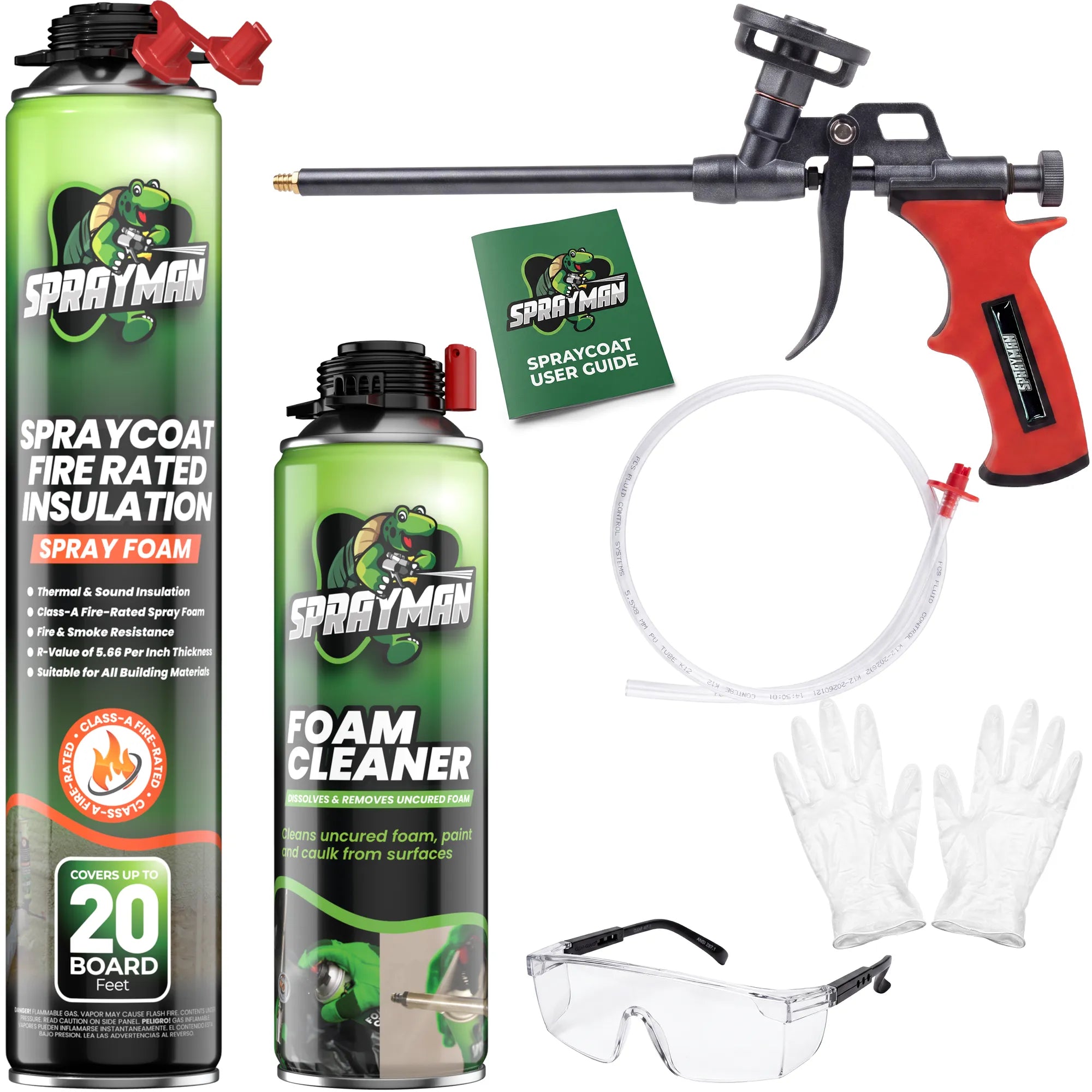

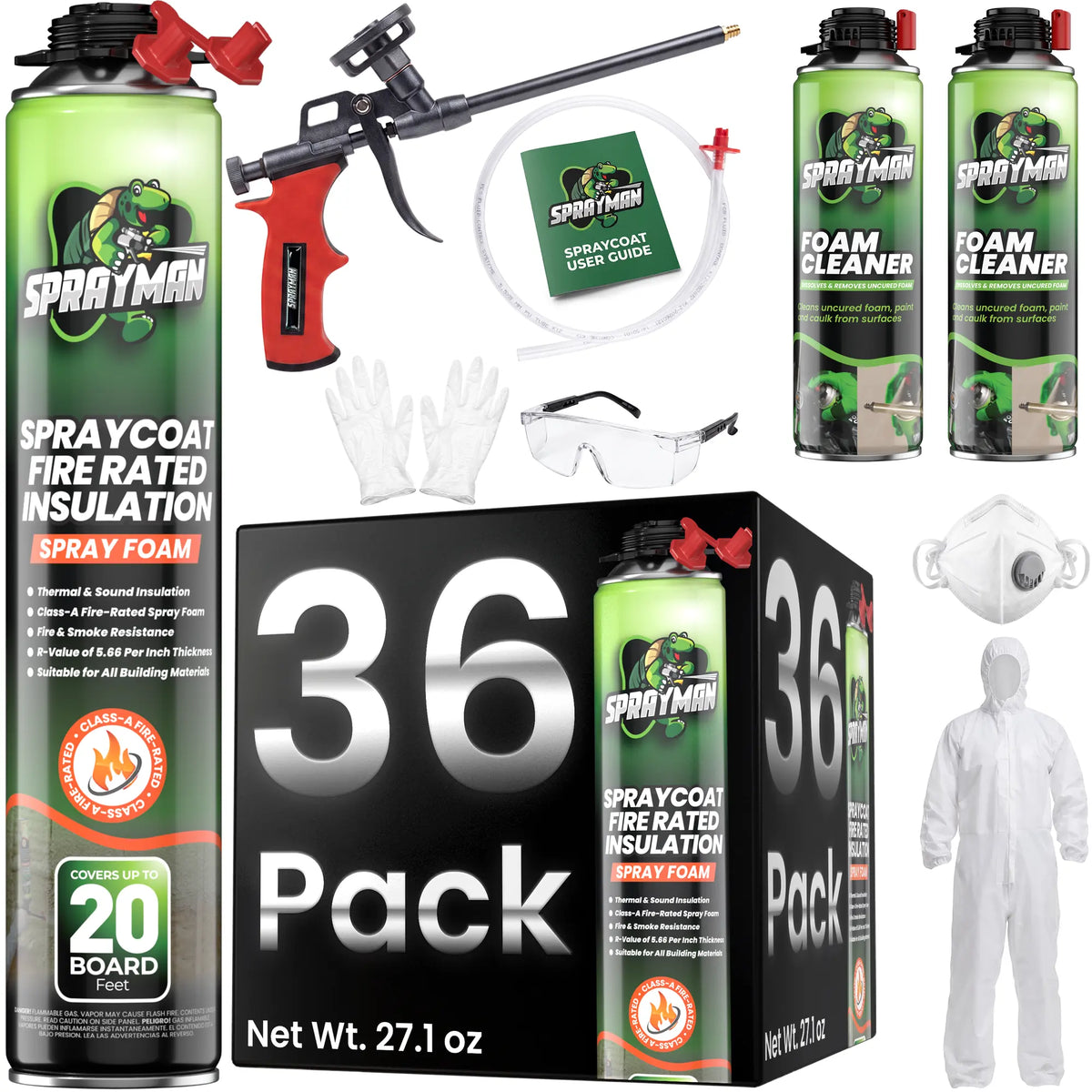

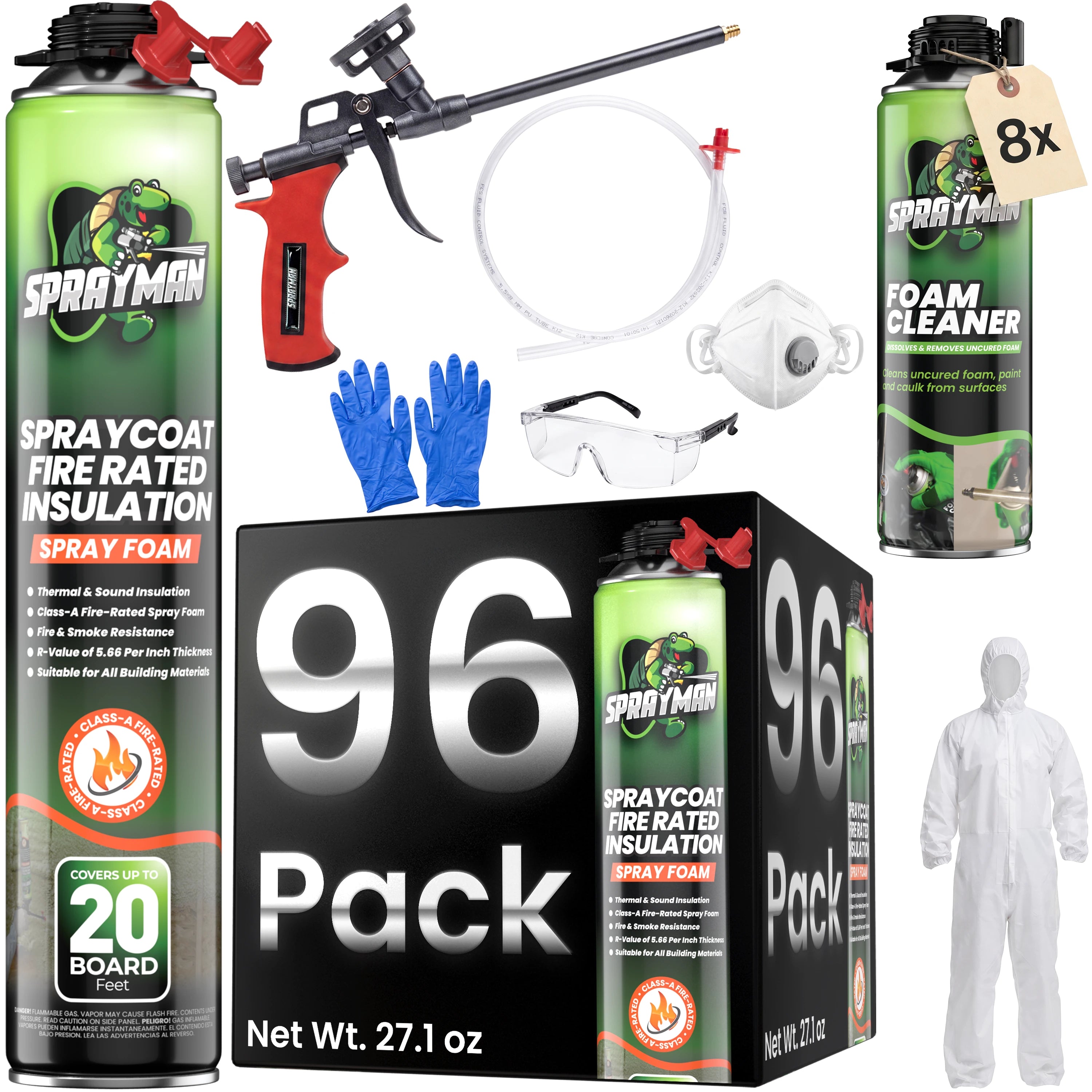

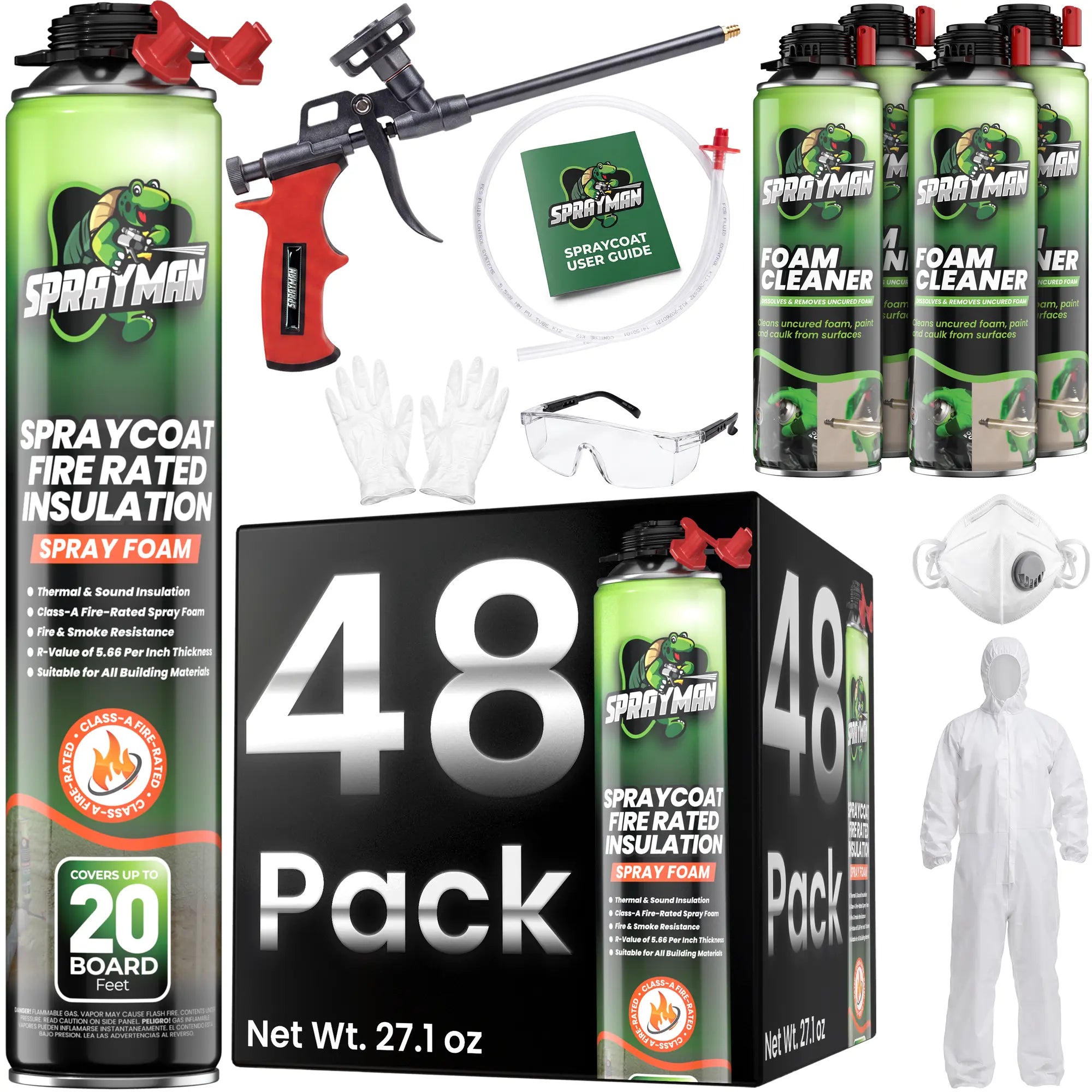

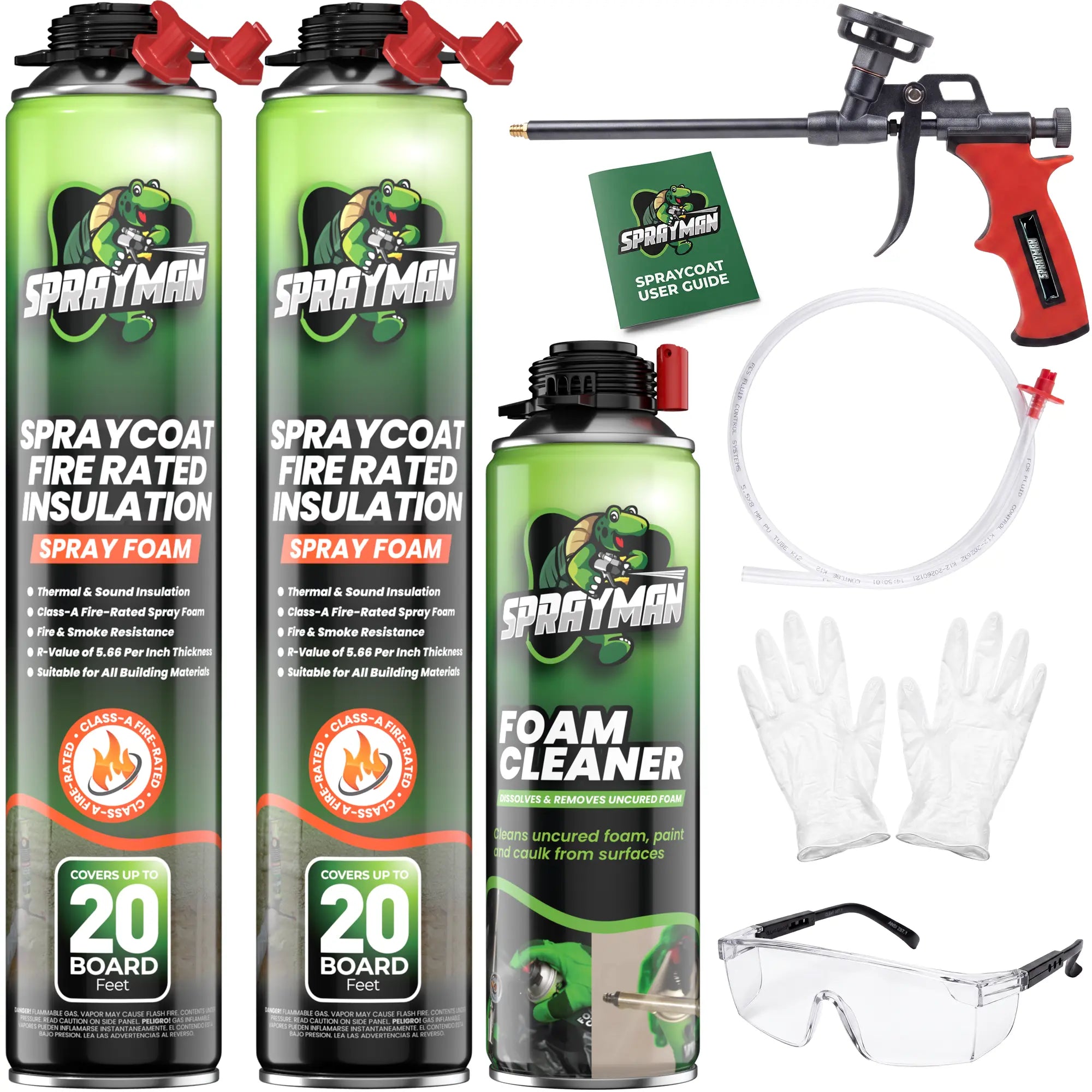

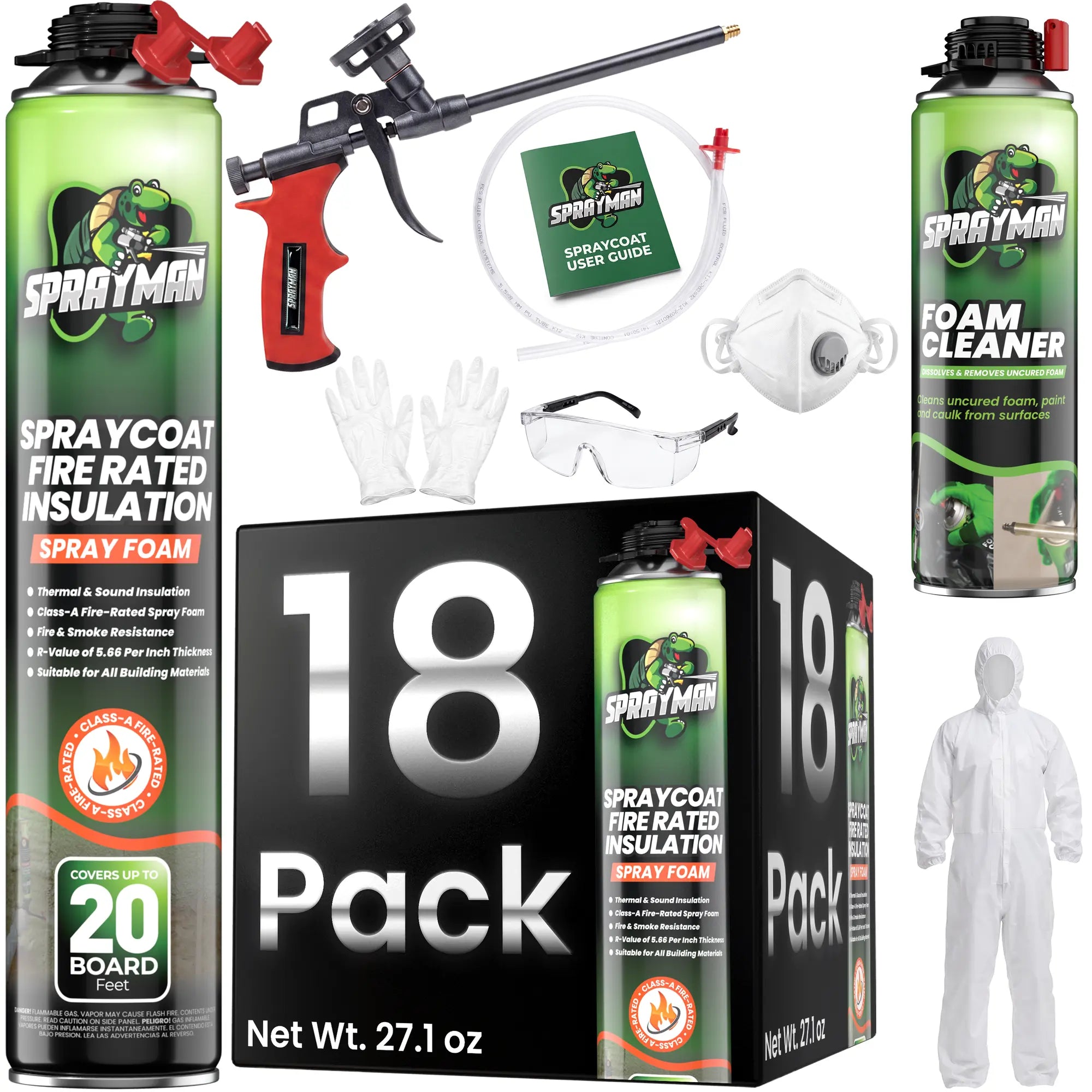

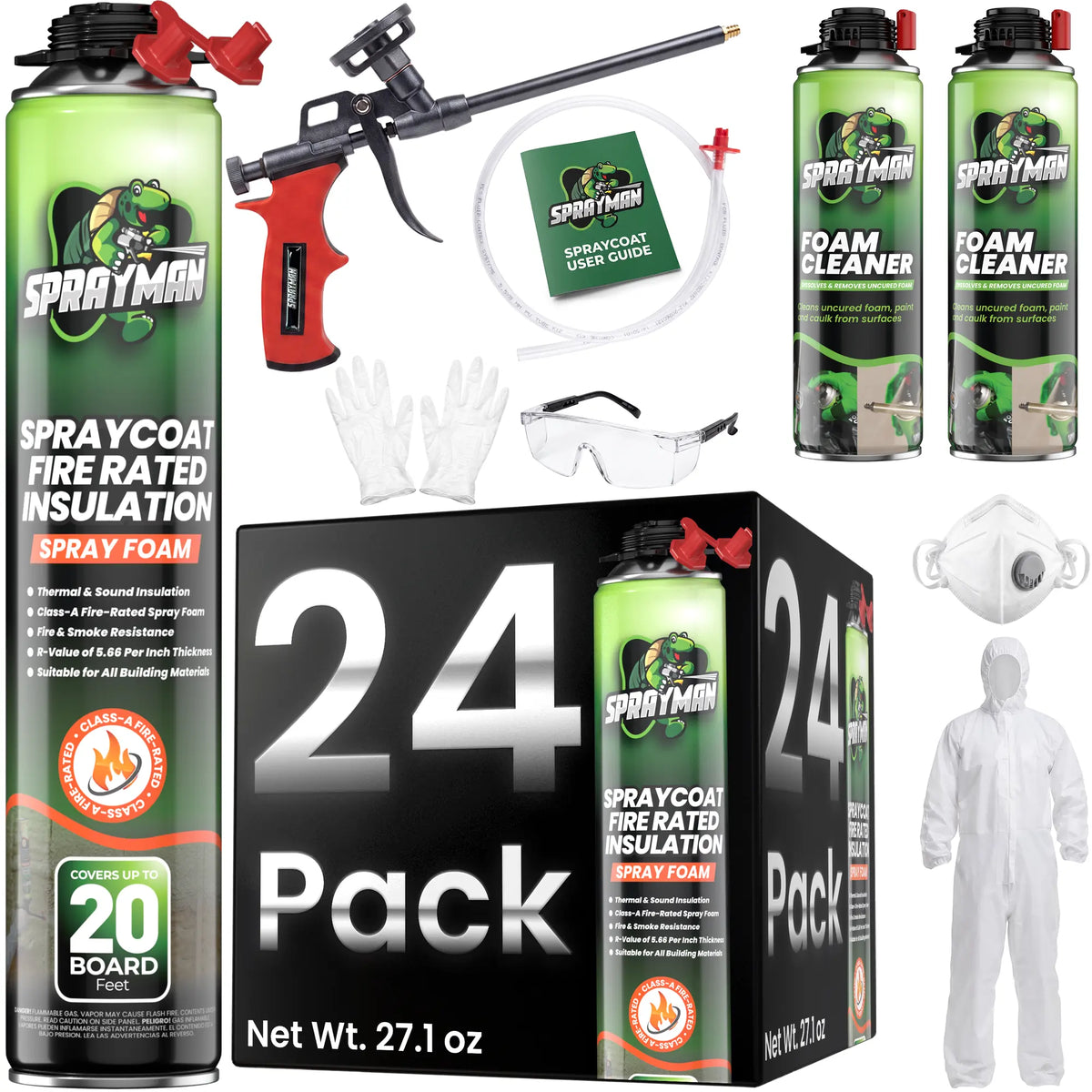

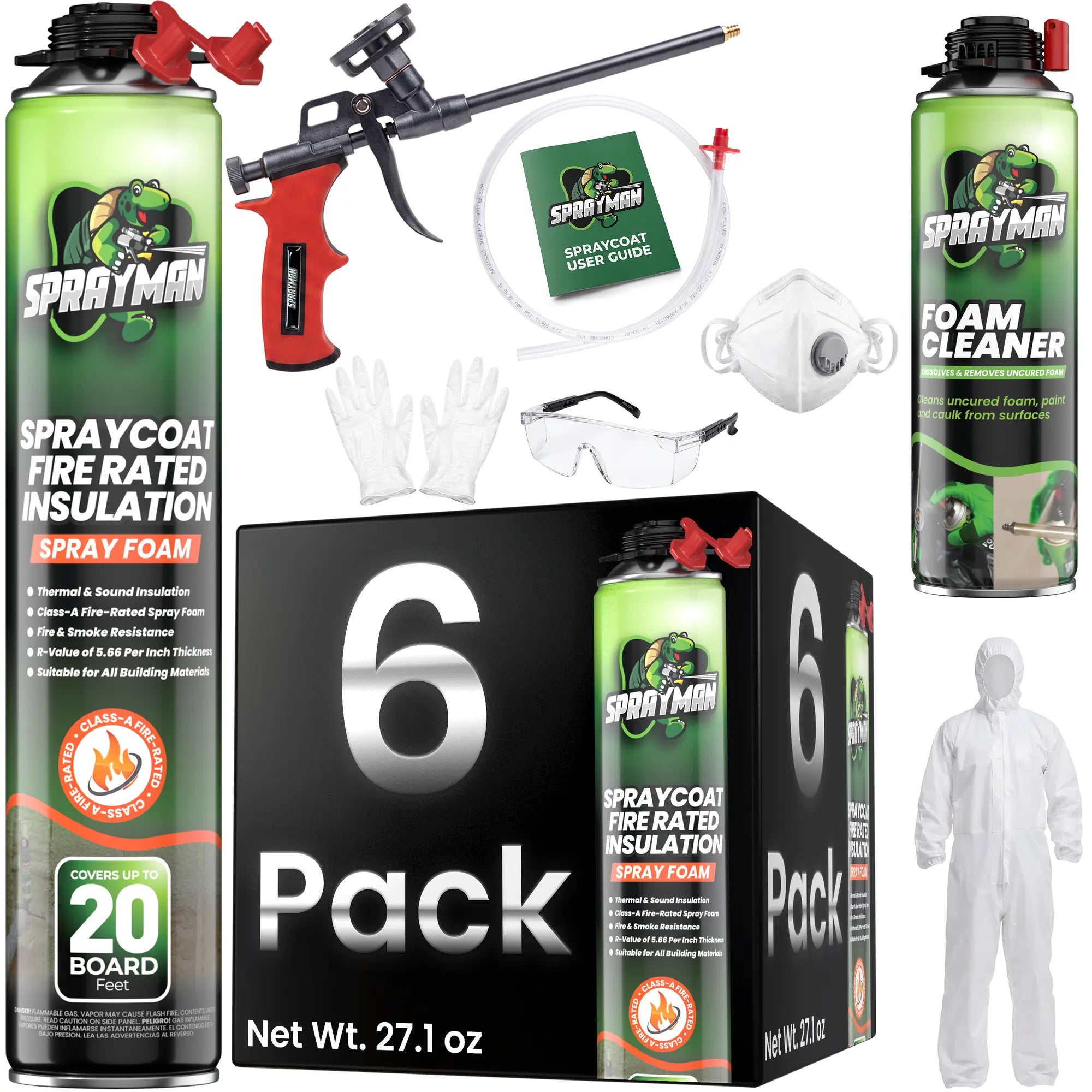

SPRAYMAN Spraycoat Thermal & Sound Insulation Spray Foam, Closed Cell | Class A Fire Rated

SPRAYMAN Spraycoat Thermal & Sound Insulation Spray Foam, Closed Cell | Class A Fire Rated

$179.95

$209.95

Save 14%

Quantity:

Easy-to-use SPRAYMAN Spraycoat thermal and sound insulation spray foam is Class A Fire Rated (ASTM E84), the highest US surface burning class. This closed-cell polyurethane foam spray can lead to significant energy savings, helping reduce energy bills by 40 % to 60 %. Ideal for both DIY spray foam insulation projects and professional installations, SPRAYMAN spray foam delivers reliable performance with user-friendly application.

Key Features

Class A Fire Rated: Class A under ASTM E84, the highest US surface burning class.
High Thermal Efficiency: R-value 5.66/inch for superior insulation.
Sound Insulation: Effectively reduces noise transfer for enhanced comfort.
Strong Adhesion: Bonds well to different types of surfaces.
Versatile Application: Can be used on various surfaces, including rough and uneven areas.
Easy to Use: Ideal for DIY spray foam insulation projects.
Eco-Friendly: Made with environmentally responsible materials, reducing your carbon footprint.

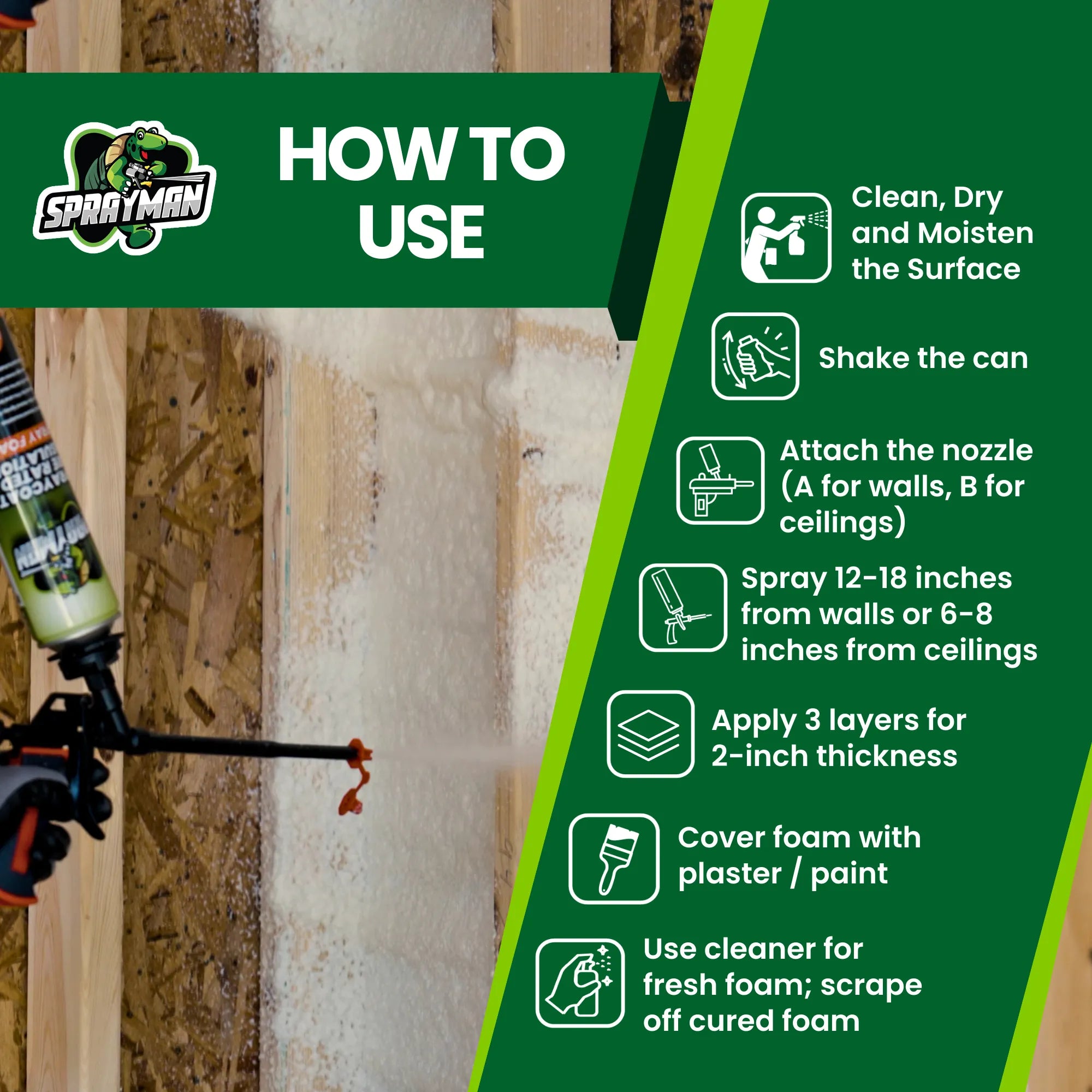

Application Guidelines

Suitable for a variety of settings including homes, commercial buildings, and vehicles.
Ideal for areas requiring both thermal and sound insulation such as; attics, roofs, walls, crawl spaces, basements, windows, pipes, garages, pole barns, under houses, tiny houses, rim joists, interior and exterior spaces, any kind of land and sea vehicles.
Ensure surfaces are clean, dry, and free of debris for optimal adhesion.
If the can is too cold or hot, bring it to room temperature (+68°F / 20°C) before use.
Wear protective clothing and gloves; ensure adequate ventilation. Avoid direct skin and eye contact with the foam and its fumes.
Shake the can vigorously before use, attach to the gun, hold the can upside-down, and dispense slowly. Ensure the spray gun and adapter are correctly connected to avoid initial gas-only emission and ensure proper foam dispensing.
Nozzle A is for vertical surface applications and Nozzle B is for ceiling applications.
For an effective insulation value, the recommended application thickness is 2 inches (5 cm), applied in at least 3 layers. The thicker, the higher insulation value. Water should be sprayed between each layer and waited for a minimum of 30 minutes.
We recommend using the entire can without stopping more than 5 minutes between spraying due to foam drying in the applicator.
Clean fresh foam with SPRAYMAN Foam Cleaner; remove cured foam mechanically.

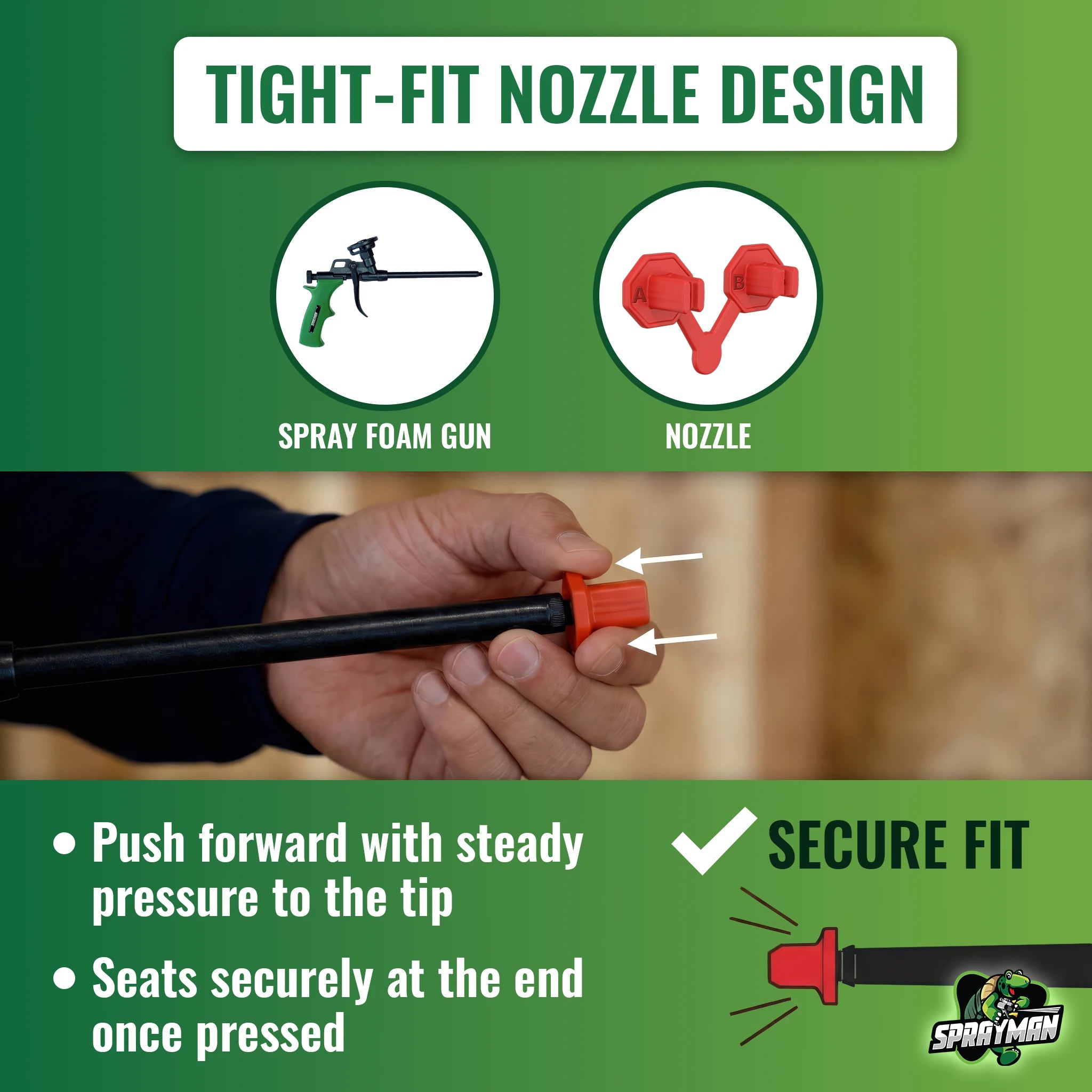

Proper Nozzle Installation: Our nozzle features a tight-fit system to ensure a secure connection. During installation, apply steady forward pressure until the nozzle clicks and locks onto the tip. A firm push is required for correct assembly.

Technical Specifications

Yield: Covers up to 20 square feet at 1-inch thickness
R Value: 5.66 per inch
Volume: Net Wt. 27.1 oz
Application Temperature: Between +41°F (5°C) to +86°F (30°C)
Full Cure Time: 24 hours
Overpaintable: Yes, after curing
Foam Color: White/Cream

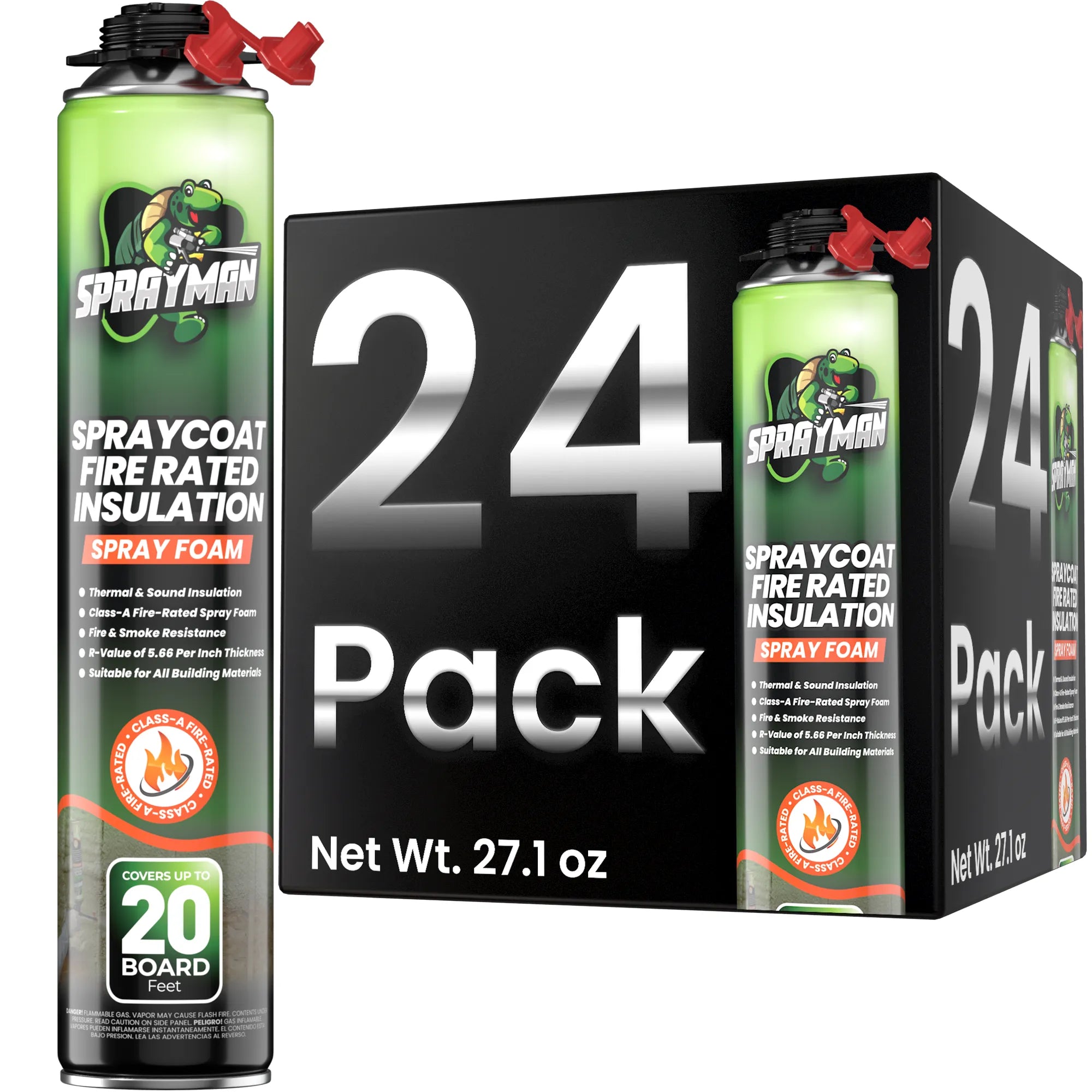

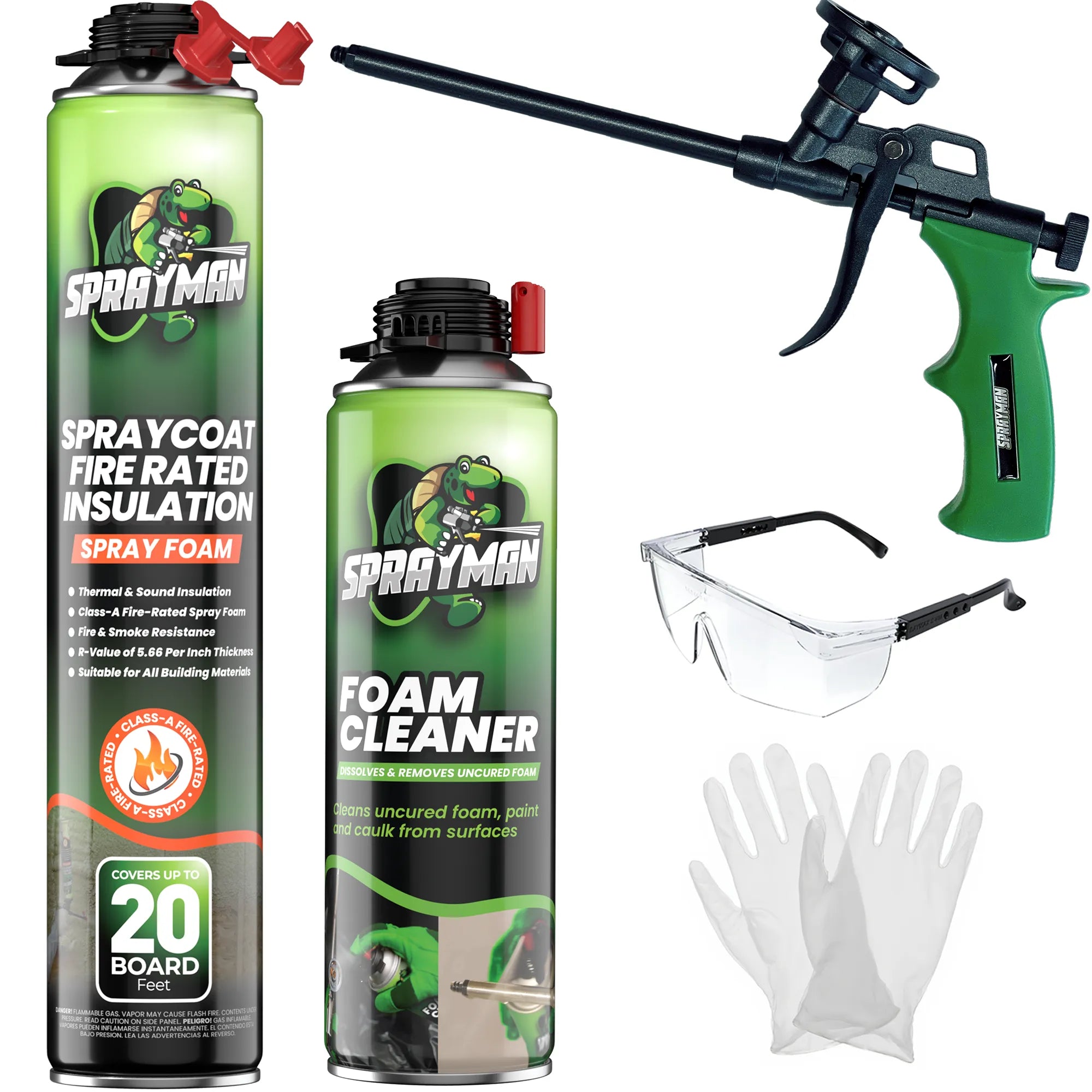

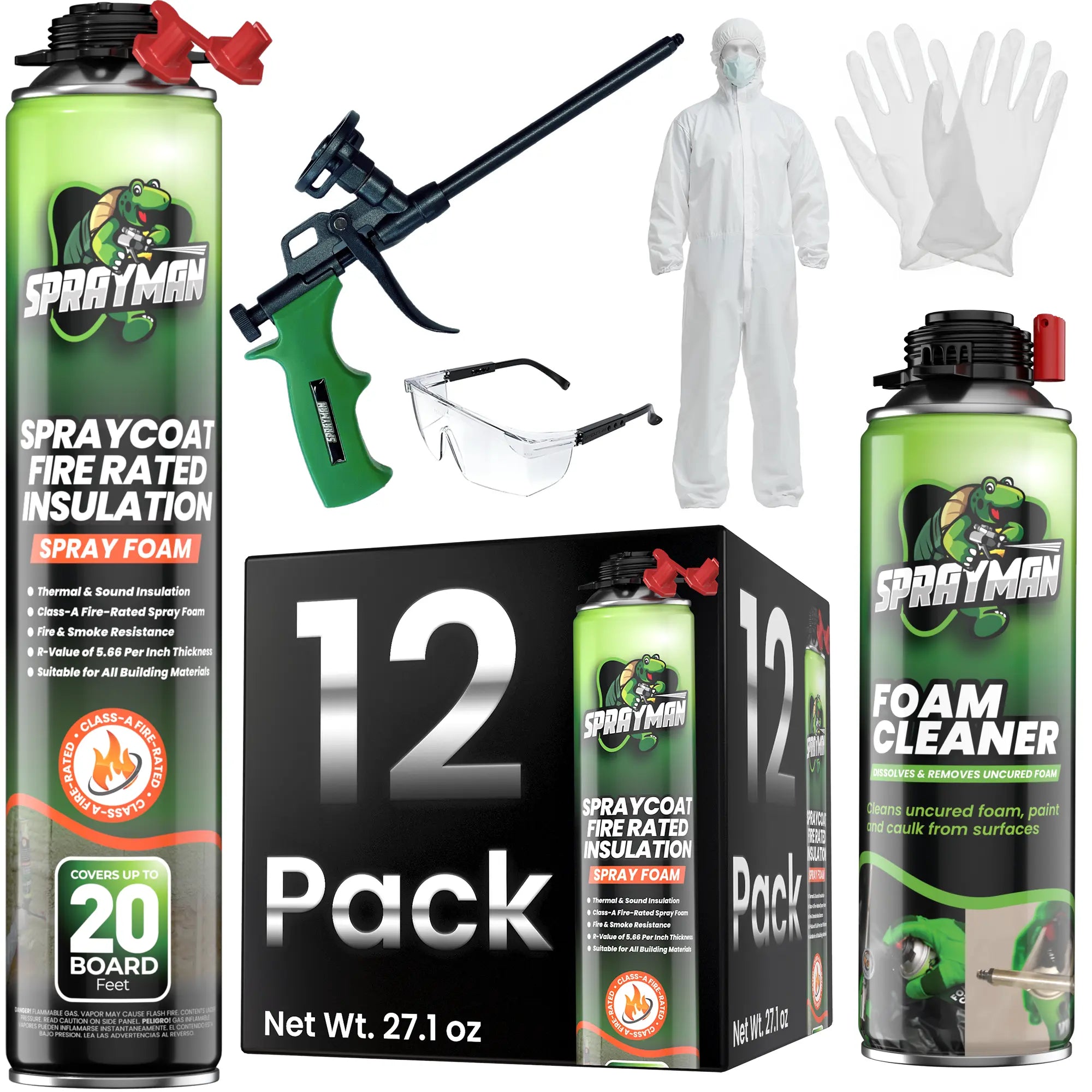

Packaging and Storage: Professionally packaged cans with nozzle included. Store in cool, dry place.
Shelf Life: 12 months under proper storage conditions.

Spray Foam Insulation Calculator

Use this calculator to determine how many Spraycoat Spray Foam Insulation cans you’ll need for your project. Each can covers 20 sq.ft. at 1 inch thickness, providing an effective R-value of 5.66.

Length (ft):

Height (ft):

Thickness (inch):

Area (sq.ft.):

sq.ft.

Insulation Needed:

... can(s)

R-Value:

5.66

Note: For total peace of mind, consider adding 10% extra. This ensures you’re covered against uneven surfaces or waste.

TDS USER MANUAL

SPRAYMAN Spraycoat Thermal & Sound Insulation Spray Foam, Closed Cell | Class A Fire Rated

$179.95

$209.95

Strong Adhesion

Easy to Use

Superior Insulation

Versatile Application

FAQ

1. What makes SPRAYMAN Spray Foam different from traditional insulation materials?

SPRAYMAN Spray Foam conforms tightly to surfaces, creating an airtight seal that significantly improves thermal and sound insulation compared to traditional materials.

2. How does SPRAYMAN Spray Foam stand out from others on the market?

Unlike many cheaper spray foams, SPRAYMAN is Class A Fire Rated under ASTM E84. It offers user-friendly, precision application, ideal for both DIY and professional use.

3. What is Class A Fire Rating?

Class A is the top class for interior wall and ceiling finishes under ASTM E84: Flame Spread Index 0 to 25, with a Smoke-Developed Index of 450 or less. Class B is 26 to 75 and Class C is 76 to 200. It measures how flame spreads across a surface, not how long an assembly holds back a fire.

4. Why is Class A Fire Rating important for insulation materials?

It shows how fast flame spreads across the material under ASTM E84, and Class A is the top class. It is not a measure of how long the material holds back a fire.

5. What is the difference between fire rated spray foam and fire block foam?

Class A rated insulation foam covers large areas and carries an ASTM E84 classification. Fire block foam seals gaps around critical areas like electrical boxes but is not intended for broad insulation.

6. Why do some cheaper gap fillers get confused with spray foam insulation?

Many inexpensive fillers, used mainly for gap or crack filling, lack genuine insulation properties and fire ratings. SPRAYMAN Spray Foam is an insulation product and Class A Fire Rated under ASTM E84.

7. Should old insulation be removed before applying spray foam? How?

Old insulation may require removal during renovations or if poorly installed. Removal is done mechanically by cutting away the foam.

8. How many cans of spray foam do I need for my project?

For roughly 1,000 sq ft at 1-inch thickness, you’ll need about 50 cans. Use the SPRAYMAN spray foam calculator for precise estimates.

9. Can I stay in my home during spray foam insulation application?

It’s best to vacate during application due to fumes. Return after 12 hours once the foam has ventilated and cured.

10. How do I ensure optimal performance from SPRAYMAN Spray Foam?

Follow guidelines: prepare surfaces, apply at recommended temperatures, use multiple layers, and perform regular inspections.

11. Is SPRAYMAN Spray Foam waterproof and suitable for exterior use?

No insulation is fully waterproof, but SPRAYMAN’s closed-cell spray foam is one of the most water-resistant. Suitable for exteriors but avoid prolonged water exposure.
