Attic Knee Wall Insulation: How to Seal Every Gap

Attic knee walls are a common weak point in finished attic insulation systems, usually because of a break in continuity, not the insulation material. A knee wall attic loses heat through 3 paths: the open joist bays under the wall, air moving through unbacked cavity insulation, and the access door and wire holes that often go unsealed. Attic knee wall insulation works when these 2 to 5 foot (0.6 to 1.5 m) walls, the floor behind them, and those gaps form one continuous air and thermal boundary. The knee wall plane suits attics with light storage behind the wall, while the roofline suits attics with ducts or pipes in that space. Fiberglass, mineral wool, rigid foam, and spray foam insulation are the 4 common methods, and each works when the air barrier stays continuous. Closed-cell spray foam can serve as the air barrier at 1.5 inches (38 mm) or more, according to the U.S. Department of Energy's Building America Solution Center (BASC). Closed-cell foam typically rates between R-5.6 and R-7 per inch, so 2.5 inches (64 mm) provides roughly R-14 to R-17.5. A 24-foot-long (7.3 m), 4-foot-high (1.2 m) attic knee wall needs about 240 board feet of foam at that thickness, the same math a spray foam calculator runs. This guide covers the boundary decision, a material comparison, insulating knee walls in 5 steps that start with the joist bays, and where the knee wall fits in how to properly insulate an attic.

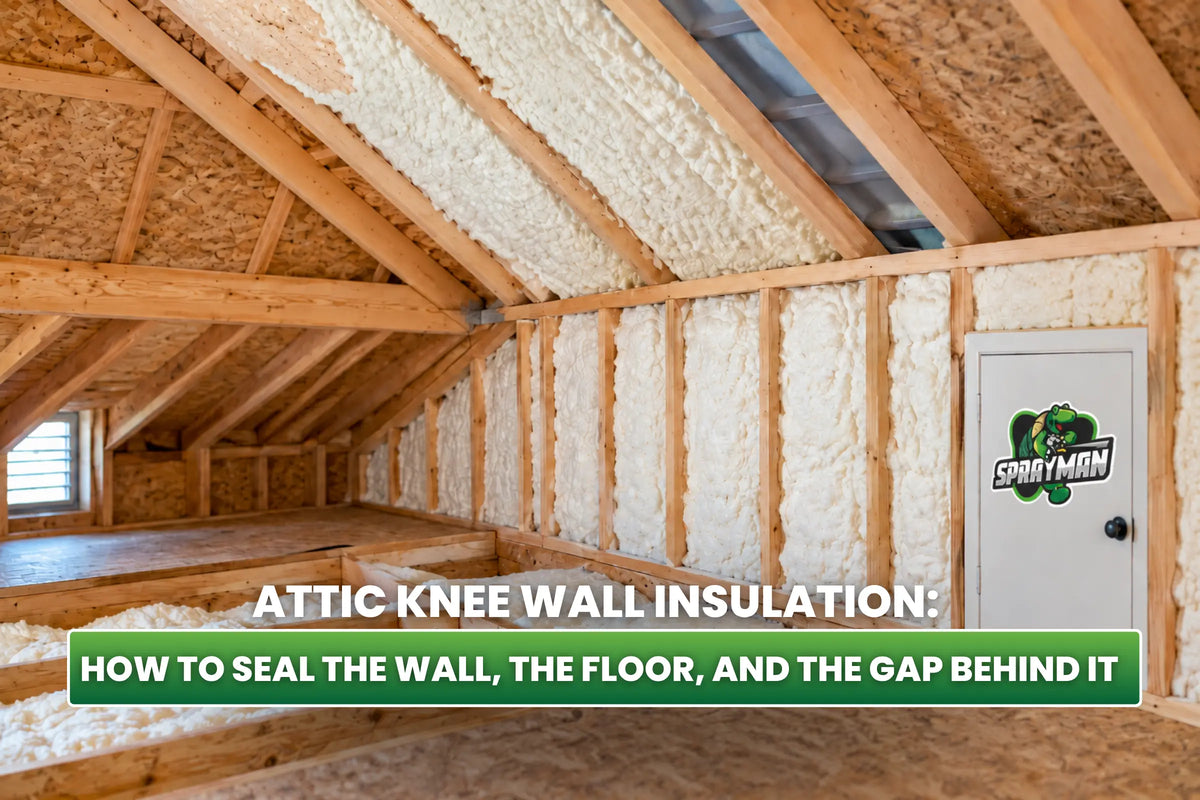

White foam insulation between attic wall studs and roof rafters, with exposed floor joists.

What Is an Attic Knee Wall and Why Does It Leak?

An attic knee wall is a short vertical wall, usually 2 to 5 feet (0.6 to 1.5 m) tall, that separates a finished attic room from the unconditioned triangle behind it. Cape Cod homes, bungalows, and bonus rooms over garages use this layout. The knee wall works like an exterior wall when the wall plane is the thermal boundary, even though it sits inside the roof.

There are 3 common leak paths in a knee wall attic:

Open joist bays: Floor joists run under the knee wall and into the room below, so attic air can flow straight into the floor cavity.
Unbacked cavity insulation: Batts with no rigid, sealed backing on the attic side let air move through them, and unsupported batts may sag or pull away from the cavity over time.
Access doors and penetrations: Knee wall doors, wiring, and pipes through the top and bottom plates create direct openings to the attic.

The joist bay path is easy to miss because it sits below the knee wall, out of sight from the finished room, and closing it depends on which boundary you choose to insulate.

Which Boundary Should You Insulate: the Knee Wall or the Roofline?

You should insulate the knee wall plane when the space behind it holds only light storage, and the roofline when ducts, pipes, or HVAC equipment sit in that space. There are 2 air barrier methods for a knee wall attic, according to BASC guidance: a continuous air barrier on the knee wall face with blocking in the joist bays, or a continuous air barrier along the underside of the roof from the top of the knee wall to the exterior wall top plate.

Condition behind the knee wall	Boundary to insulate	Reason
Empty space or light storage	Knee wall plane + floor behind it	Smaller area to insulate in many attics
Ductwork or plumbing	Roofline (rafters)	Keeps ducts and pipes inside conditioned space
Heavily used, conditioned storage	Roofline (rafters)	Storage stays at room temperature
Vented roof with soffit intake	Knee wall plane	Leaves rafter ventilation paths open

Labeled attic knee wall insulation diagram showing air-sealed framing, joist bay blocking, floor insulation, and an insulated access door.

Insulating at the knee wall plane can reduce the surface area you need to insulate compared with moving the boundary to the roofline, which makes it the common DIY route. The material you choose then decides how the air barrier gets built.

Which Insulation Works Best for an Attic Knee Wall, Spray Foam or Batts?

The insulation that works best for an attic knee wall is a system that provides both a thermal layer and a continuous air control layer, whether you choose spray foam or batts. Closed-cell spray foam insulation combines both layers in one step, while batt systems rely on a separate rigid backing. There are 4 common knee wall insulation methods:

Method	Thermal layer	Air control	Main limitation
Closed-cell spray foam	High R-value per inch, fills irregular cavities	Can provide air control when applied at the required thickness	Material cost and application temperature limits
Fiberglass batts	Cavity insulation	Needs a separate rigid, sealed air barrier	Gaps, compression, and sag if unsupported
Mineral wool batts	Cavity insulation with a firmer fit	Needs a separate rigid, sealed air barrier	Separate air sealing still required
Rigid foam board with sealed seams	Continuous layer over the studs	Works well when seams and edges are sealed	Cutting and taping detail work

Batt systems perform well when drywall, OSB, or rigid foam covers the attic side and sealant closes every seam. Fewer seams mean fewer places for the air barrier to fail, which is why the installation steps below build the wall layer and the air barrier with one continuous foam layer.

How Do You Insulate an Attic Knee Wall With Spray Foam?

To insulate an attic knee wall with spray foam, close the joist bays first, then build a continuous foam layer from the attic side that carries both the insulation and the air barrier. The sequence matters as much as the foam itself. Follow these 5 installation steps:

Block the joist bays: Cut rigid foam, plywood, or OSB to fit each floor joist bay under the knee wall, then seal all 4 edges with foam sealant.
Seal the plates: Add a top or bottom plate where one is missing, then seal the top plate, the bottom plate, the vertical seams where the end studs meet the rafters, and every wire or pipe penetration.
Spray the stud cavities: Apply closed-cell foam against the back of the room's drywall in passes within the manufacturer's maximum lift thickness, until the layer reaches the air barrier thickness covered below.
Connect the floor: Insulate the attic floor behind the knee wall and butt it tightly against the bottom of the foam layer, with no gap.
Seal the access door: Insulate and weatherstrip the door as the final detail of the wall.

The air barrier goes in before the attic floor insulation in the unconditioned part of the attic, according to BASC guidance, so steps 1 and 2 always come first. The foam thickness in step 3 then decides whether the foam layer alone can carry the air barrier.

Five-step attic knee wall spray foam insulation infographic showing joist blocking, plate sealing, wall cavity spraying, floor connection, and access door sealing.

How Thick Should the Foam Be on a Knee Wall?

The foam on a knee wall should be thick enough to meet both the air barrier plan and the R-value target for your project. Closed-cell spray foam can serve as the air barrier at 1.5 inches (38 mm), according to BASC guidance. At a typical R-5.6 to R-7 per inch, the nominal ranges look like this:

Thickness	Nominal R-value range
1.5 inches (38 mm)	R-8.4 to R-10.5
2 inches (51 mm)	R-11.2 to R-14
2.5 inches (64 mm)	R-14 to R-17.5
3.5 inches (89 mm), full 2x4 cavity	R-19.6 to R-24.5

Spray foam goes on in passes, so thicker targets take more passes and more time. Attic temperature often controls the schedule more than thickness does, because a summer attic can climb past a product's application range by midday. Check the manufacturer's range, plan the work for early morning, spring, or fall, and turn the target thickness into a total foam volume before you buy.

How Much Spray Foam Does a Knee Wall Need?

A 24-foot (7.3 m) knee wall that stands 4 feet (1.2 m) tall needs about 240 board feet (0.57 m³) of spray foam at 2.5 inches (64 mm) of nominal thickness. A spray foam calculator runs this math for any wall size: the wall covers 96 sq ft (8.9 m²), and one board foot equals 1 sq ft at 1 inch (25 mm) thick, so 96 × 2.5 = 240 board feet. Divide the total by the rated yield of the product you plan to use, then add about 10% for overspray. Actual yield also changes with temperature, substrate, and spray technique. The 10% margin also covers the joist bay seals and the access door, the last opening the wall layer has to close.

How Do You Insulate a Knee Wall Access Door?

To insulate a knee wall access door, treat it as part of the wall's air barrier, not as a separate item. Many knee wall doors are thin panels that sit loosely in a frame with open gaps around it. There are 4 steps to seal one:

Seal the frame gap: Fill the gap between the door frame and the knee wall framing with low-expansion foam, which seals the opening without bowing the frame.
Foam the back panel: Spray closed-cell foam onto the attic side of the door, keep it back from the edges, and trim any excess once it cures so the door still closes flush.
Weatherstrip the frame: Run compressible weatherstripping around all 4 sides of the door stop.
Latch it tight: Install a latch or hook that pulls the door firmly against the weatherstripping.

An insulated, latched door closes the last opening in the wall, and it leads directly into the mistakes that undermine the rest of the assembly.

What Mistakes Undermine Insulating Knee Walls?

The mistakes that undermine insulating knee walls come from skipping air barrier details, not from picking the wrong material. There are 5 frequent errors in knee wall retrofits:

Unsupported batts: Air movement can pull through fiberglass that has no rigid, sealed backing on the attic side, and unsupported batts may sag over time.
Compressed or gapped batts: A batt squeezed behind wiring or cut short of the cavity loses part of its rated R-value.
Open joist bays: An insulated wall above an open joist bay still lets attic air into the floor below.
Unsealed access doors: A hollow door with no weatherstripping can leak more air than the wall around it.
Disconnected floor insulation: A break between the wall layer and the attic floor insulation creates a continuous bypass.

Each of these errors ties back to the larger attic system, which decides how the knee wall performs.

How Does a Knee Wall Fit Into a Properly Insulated Attic?

A knee wall fits into a properly insulated attic as one of 3 connected surfaces, along with the sloped ceiling and the flat ceiling above the room. Understanding how to properly insulate an attic means treating those 3 surfaces as one thermal and air control boundary, which is why attics and roofs are common targets for spray foam. Heat loss into the attic in colder climates can warm the roof deck, melt snow, and contribute to ice dams, according to BASC guidance. Moist indoor air leaking into a cold attic also raises the risk of condensation and frost. An airtight knee wall reduces both problems at the source, and the questions below cover the details that decide whether it stays airtight.

What Do Homeowners Ask About Attic Knee Wall Insulation?

Homeowners researching attic knee wall insulation often ask about R-value, the floor behind the wall, code, and ventilation. The 6 questions below cover the details the steps above leave open.

What R-value does an attic knee wall need?

An attic knee wall needs the R-value set by the locally adopted energy code for your climate zone and wall assembly. Code tables list that requirement by climate zone, and spray foam insulation R-value per inch determines how thick the foam layer must be to meet it. The requirement can also differ between new construction and retrofits. Treat the knee wall as part of the building enclosure rather than assuming one universal R-value when the wall plane is the thermal boundary.

Should you insulate the floor behind the knee wall?

You should insulate the floor behind the knee wall whenever the knee wall plane is the thermal boundary. That floor is the ceiling of the room below, so it needs the same insulation level as the rest of the attic floor and a tight connection to the bottom of the wall layer.

Do you insulate the knee wall if you insulate the roof deck?

You do not insulate the knee wall itself when you insulate the roof deck. The insulation continues along the rafters into the space behind the wall, which brings that space inside the conditioned envelope.

Does closed-cell foam need a thermal barrier on the attic side of a knee wall?

Closed-cell foam on the attic side of a knee wall often needs an ignition or thermal barrier, depending on local code. Building codes regulate exposed foam plastic, and the thermal barrier or ignition barrier requirement depends on how the attic space is used and accessed. Check with your local building official before you close the job.

Do you need to vent the space behind a knee wall?

You should vent the space behind a knee wall through an open rafter ventilation path when you insulate the knee wall plane in a vented roof. Install baffles as required to maintain the ventilation path specified by the roof assembly, local code, and the baffle manufacturer.

Is an attic knee wall load-bearing?

An attic knee wall is sometimes load-bearing because some knee walls support the rafters. Insulation goes into the cavities without cutting or removing studs, so the framing stays intact.

What Is the Right Next Step for Your Knee Wall?

The right next step for your knee wall is to decide the boundary, then measure before you buy material. Check what sits behind the knee wall, measure the wall length and height, choose the target thickness, and calculate the board feet you need. Seal the joist bays and plates first, spray the cavities to the air barrier thickness, and connect the wall tightly to the attic floor insulation and the access door. A blower door test or an infrared camera scan can confirm whether air still leaks at the knee wall once the work is done. Single-component spray foam is one way to build that continuous system without rig equipment.

How Does Spraycoat Handle a Knee Wall Project?

Spraycoat handles a knee wall project with a closed-cell, single-component spray foam that needs no rig equipment. It goes on with a spray foam gun and rates R-5.66 per inch, so 2.5 inches (64 mm) delivers about R-14.1, and it carries a Class A fire rating. Each can yields about 20 board feet, which puts the 240-board-foot example wall at about 12 cans before waste. Spraycoat goes on in passes of up to 1 inch (25 mm), with 30 minutes between passes. It applies best between 41°F and 86°F (5°C to 30°C), with 68°F (20°C) as optimal, so a summer attic job belongs in the early morning.

Sources

U.S. Department of Energy, Pacific Northwest National Laboratory, "Attic Knee Walls," Building America Solution Center, last updated September 9, 2022.
(https://basc.pnnl.gov/resource-guides/attic-knee-walls)
